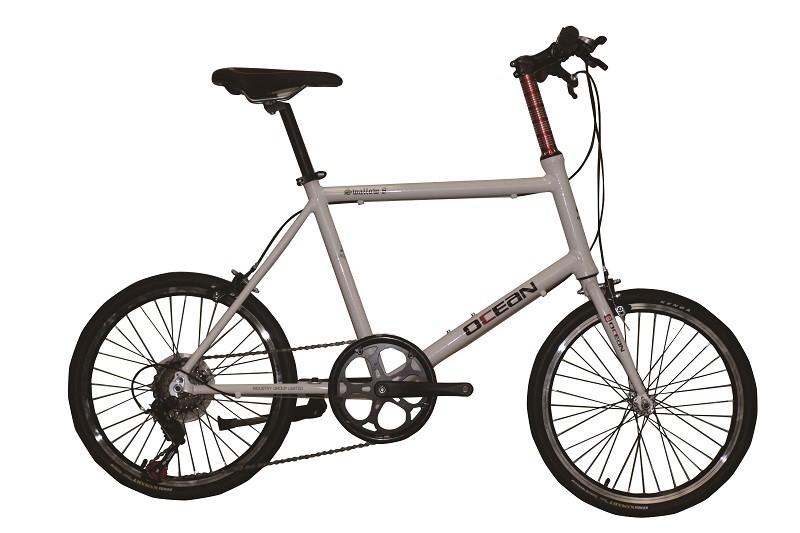

Fashion On-road bike

Contact Person
leave a message:
Contact Now
Address:
No.88 Heyuan Road,China Bicycle Industry Zone Tianjin China

Fashion On-road bike

Fashion On-road bike
CategoriesRoad Bike
AlbumView larger image
BrandOcean Bicycle
ModelOC-20158A
Gears7
FrameALLOY
city bikecolor to order
Unit PriceUS $ 88 / set
FOB portTianjin
Terms of PaymentL/C, T/T, MoneyGram
Download DOC
Update Time2018-10-18
Detail Information

Fashion On-road bike

pecifications:

FRAME

SizesS, M, L, XL
Colorswhite/black
FrameAluminum 6061  20 road H/T:44*30*100mm
Forksteel 25.4*28.6*400mm no screw thread
ShockN/A

COMPONENTS

HandlebarOcean model, W:560mm*22.2*25.4*2.2T aluminum
StemOcean model,EXT:80mm,H:40mm -10 aluminum
SeatpostOcean sport, 27.2*300mm,CNC alloy clamp
SaddleOcean Connect,
PedalsYH-21X 9/16″ BS standard



DRIVETRAIN

ShiftersShimano Tourney SL-TX50  L/2 R/7 index
Front DerailleurShimano Tourney FD-TZ30
Rear DerailleurShimano Tourney RD-TZ50 direct install
BrakesZhangxing  V-brake 60mm  L:110
Brake LeversZhangxing 3 fingers
CassetteShimano Tourney CS-TZ21  14-28T 1/2″*3/32″
ChainKMC-Z51
CranksetProwheel 1/2″*3/32″39-52T*170mm
Bottom BrackeNeco-B910 one piece sealed BC:1.37"*24T,L=110.5

WHEELS

RimsHengli 20*1.35*14G*36H,double wall alloy CNC A/V
HubsHongchang alloy
SpokesShengjinhong 14G,F:289mm,R:288/286mm
TiresKenda rubber 20"*1.35 BK


OTHER

Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All Giant bikes are designed for best-in-class weight and ride quality.


The specifications can be adjustable without notice!
