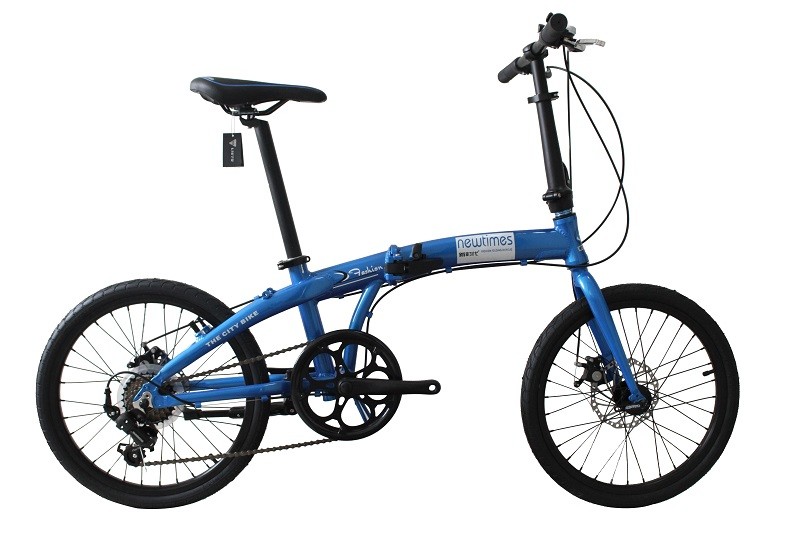

Mini foldable bike 1.5

Mini foldable bike 1.5

Mini foldable bike 1.5
Mini foldable bike 1.5Mini foldable bike 1.5
CategoriesFolding bike
AlbumView larger image
BrandNewtimes , Ocean,Ganna
ModelOC-F20100DA
frameAlumiinum 6061
forkHi-ten steel
derailleurShimano 7S
rimdouble wall alloy
partsalloy handler bar and seat post
standardISO9001
Unit PriceUS $ 108 / carton
FOB portXinggang Tianjn
Terms of PaymentL/C, T/T, MoneyGram, Paypal
Download DOC
Update Time2018-04-25
Detail Information

Mini foldable bike 1.5

pecifications:

FRAME

SizesS, M, L, XL
Colorsblue/white logo
FrameAluminum 6061  20*320mm*1.75″ H/T:30*34*90mm
Forksteel 20"*1.75 TIG 22.2*25.4*125mm
ShockN/A

COMPONENTS

HandlebarOcean model, TF-802H 540mm*22.2*1.4T
StemOcean model,TF-L907 top:28.6*280mm down:22.2*94 inside hexagon
SeatpostOcean sport, SP-286A 31.8*350L 1.4T alloy clamp
SaddleOcean Connect,
PedalsYH-18X PP BK



DRIVETRAIN

ShiftersShimano Tourney SL-TX50
Front DerailleurNIL
Rear DerailleurShimano Tourney RD-FT35
BrakesHuihong mechanical disc 160mm
Brake LeversSangxia 3 fingers
CassetteShimano Tourney CS-TZ21  14-28T
ChainGM-Z51
CranksetChenda 52T 1/2"*3/32"*52T*170mm
Bottom BrackeNeco one piece sealed

WHEELS

RimsHengli Alloy Double Wall 14G 36H
HubsKT 14G QR
SpokesWanhua 14G*190/187/185mm
TiresWanda P1159 20"*1.5 BK


OTHER

Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All Giant bikes are designed for best-in-class weight and ride quality.


The specifications can be adjustable without notice!
